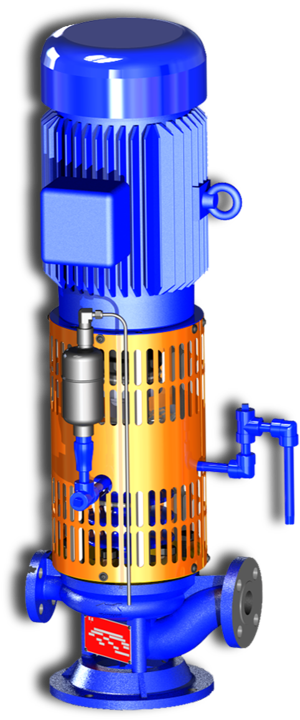

RAV Series Vertical Air-Cooled High Temperature Pumps
The RAV Series is a vertical, space-saving pump for extreme high-temperature service up to 650°F with a maximum pressure of 250 psig.

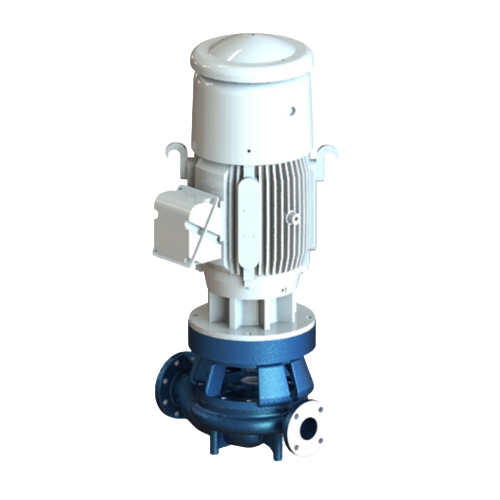

DL Series Vertical Inline High Temperature Pumps
The Dean DL Series is engineered for demanding applications, serving as one of the few high-temperature inline pumps on the market. Its close-coupled, vertical inline design provides a compact, cost-effective solution that saves valuable floor space without requiring separate alignment.
Compact Vertical Design: The vertical inline configuration requires a minimal installation footprint, saving valuable floor space and simplifying piping layouts in crowded areas.
High Temperature Capability: As one of the few high temperature inline pumps on the market, the DL Series is engineered to handle thermal fluids and challenging chemical processes up to 550°F (288°C).
Durable Construction: Options include ductile iron and 316 Stainless Steel, providing proven durability and a long service life for general water and solvent applications.
No Alignment Required: The motor and pump are a single, compact unit. This close-coupled design eliminates time-consuming shaft alignment procedures during installation and maintenance.
Product Specifications
- Capacities:
- Up to 800 GPM (3,028 LPM)
- Heads:
- Up to 550 feet (167 m)
- Max Temperature:
- Up to 550°F (288°C)
- Working Pressures:
- Up to 275 psig (1,896 kPa)
- Available Sizes:
- 7
- Construction:
- Ductile Iron or 316 Stainless Steel
- Design:
- Vertical Inline, Close-Coupled
Need a Pump Curve?
Use our sizing tool to configure your pump based on your operating conditions.
Related Products
RWAV Series Vertical Air-Cooled Hot Water Pumps
The RWAV Series is a vertical, space-saving pump for higher pressure applications of 450 psig at temperatures up to 400°F.

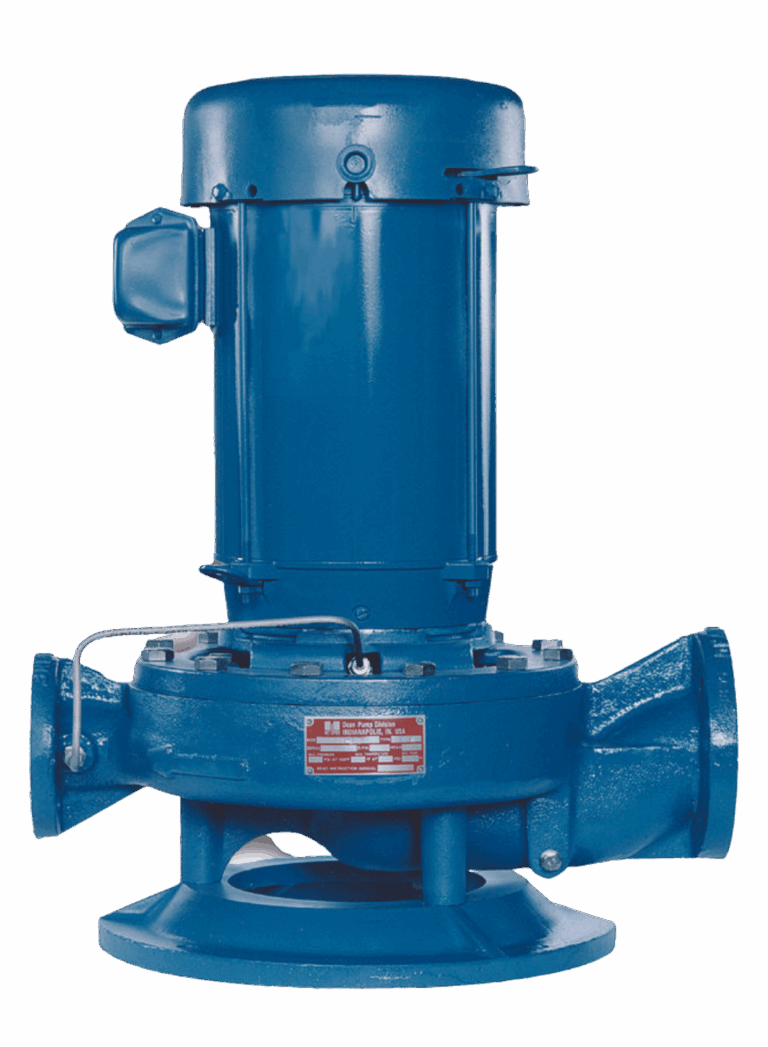

CNV Series Vertical Inline Chemical Pumps
The CNV Series is a close-coupled, vertical inline pump specifically designed for corrosive chemical services, featuring a 316 stainless steel construction for superior durability.

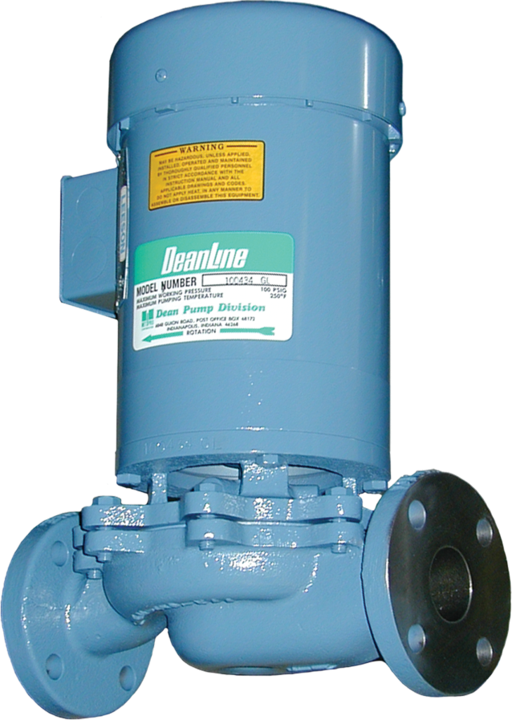

Deanline Series Vertical Inline Pumps
