384N Magnetic Drive Sealless Drum Pumps
These pumps offer leakproof, magnetic drive performance in CPVC-Polypropylene or Stainless Steel Kynar construction for the safe transfer of concentrated acids and alkalies.

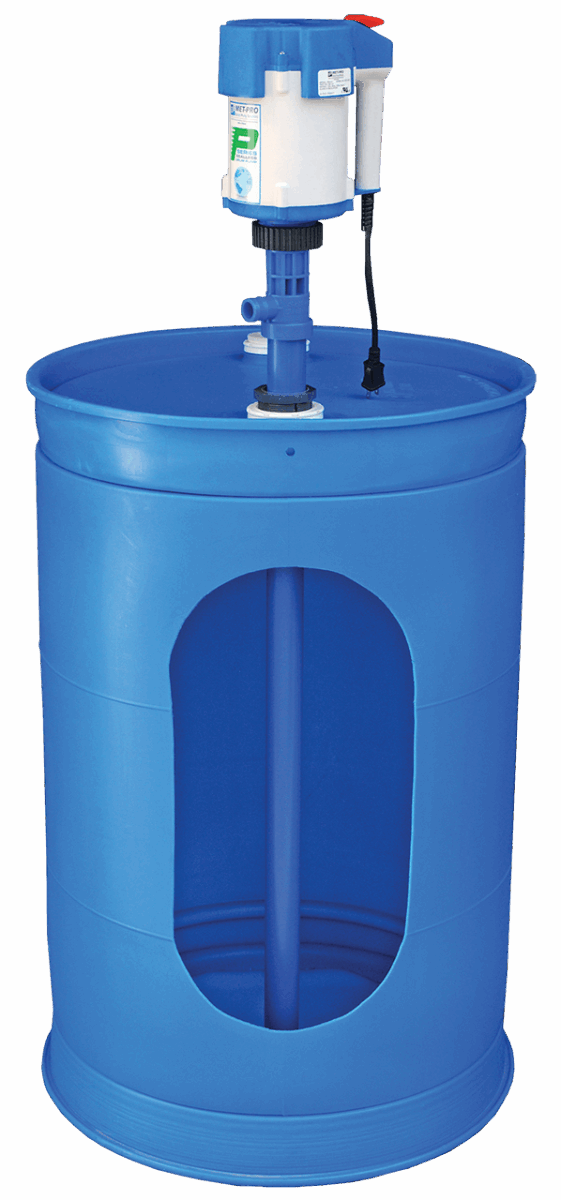

P90 Series Drum Pumps
Sethco’s high-powered sealless P90 Series Drum Pumps are designed to be corrosion-resistant and leak-free for demanding applications, such as handling aggressive, corrosive, and hazardous fluids. These cost-effective pumps are typically available for immediate delivery and easy to install, giving fluid handling operations a quick and reliable drum pump.
Leakproof, Sealless Design: This design eliminates the weak point of mechanical seals, making them ideal for fluid transfer without leaks or emissions.
Corrosion Resistance: Constructed from high-strength thermoplastics or stainless steel, they ensure long-lasting resistance to corrosion.
Versatile Construction: Available in polypropylene or Kynar (PVDF) in 30 to 60 in. (762 to 1,524 mm) or 40 in. (1,016 mm) in 316SS.
Immediate Availability: All drum pumps are available for immediate delivery.
Product Specifications
- Capacities
- Up to 35 GPM (135 LPM)
- Heads
- Up to 39 feet (12 m)
- Tube Length
- 10 in. (254 mm) increments from 30 in. (762 mm) to 60 in. (1,524 mm)
- Motors
- 115VAC or 90 psig compressed air, available variable speed
- Max Temperature
- Up to 180°F* (82.2°C) CPVC, 250°F* (121.1°C) PVDF or 250°F* (121.1°C) 316 Stainless Steel
- Available Sizes
- 4
- Construction
- CPVC, PVDF, or 316 Stainless Steel
- Design
- Centrifugal-Top entry through 2 in. (50.8 mm) drum bung
* with water, may vary with fluid
Need a Pump Curve?
Use our sizing tool to configure your pump based on your operating conditions.
