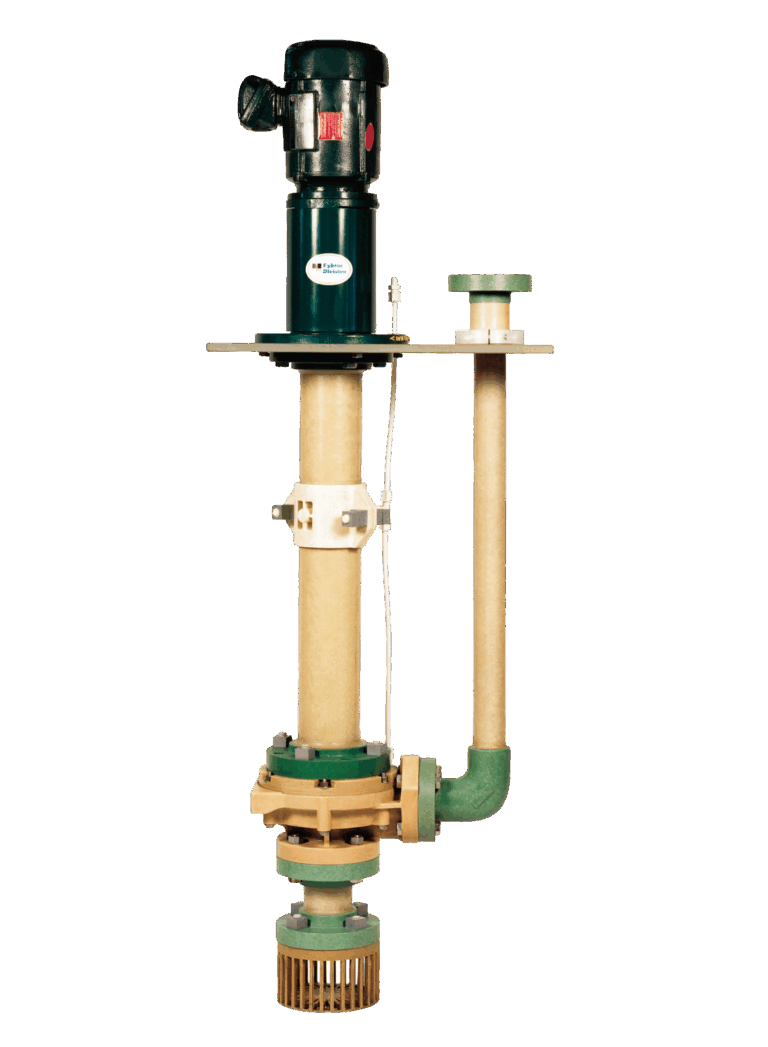

Series 5500 Vertical Sump Pumps
The workhorse for deep, corrosive sumps. The Series 5500 is a heavy-duty, vertical pump with a vapor seal to protect motor bearings, available in lengths up to 30 feet.
Series 7500 Cantilever Sump Pumps
When your sump application contains abrasive fines, harsh liquids or solvents, submerged bearings become a constant point of failure and maintenance. The Fybroc Series 7500 eliminates this problem. Its true cantilevered shaft design operates without any submerged bearings, allowing it to handle tough, abrasive solutions and run dry without damage. This makes it the ultimate low-maintenance pump for the most severe sump services.
No Submerged Bearings: The cantilevered shaft design has no bushings or bearings below the mounting plate, eliminating the primary wear point in abrasive applications.
Unlimited Run-Dry Capability: With no submerged components to fail, the Series 7500 can run dry indefinitely without damage, providing unmatched reliability during upset conditions or intermittent flow.
Handles Abrasives & Solids: The robust FRP construction and bearing-free design make it the ideal choice for pumping abrasive fines, solvents, and other corrosive liquids.
Non-Clogging Recessed Impeller Option: For applications with abrasive or large particle solids, an optional recessed impeller is available, creating a vortexing action that minimizes wear and prevents clogging.
Product Specifications
- Capacities
- Up to 4,500 GPM (17,034 LPM)
- Heads
- Up to 200 feet (61 m)
- Available Sizes
- 18
- Pump Length
- From 18 in. (0.46 m) up to 4 feet (1.21 m)
- Construction
- Fiberglass Reinforced Polymer (FRP)
- Design
- Vertical Sump, Cantilevered Shaft
Need a Pump Curve?
Use our sizing tool to configure your pump based on your operating conditions.
Related Products

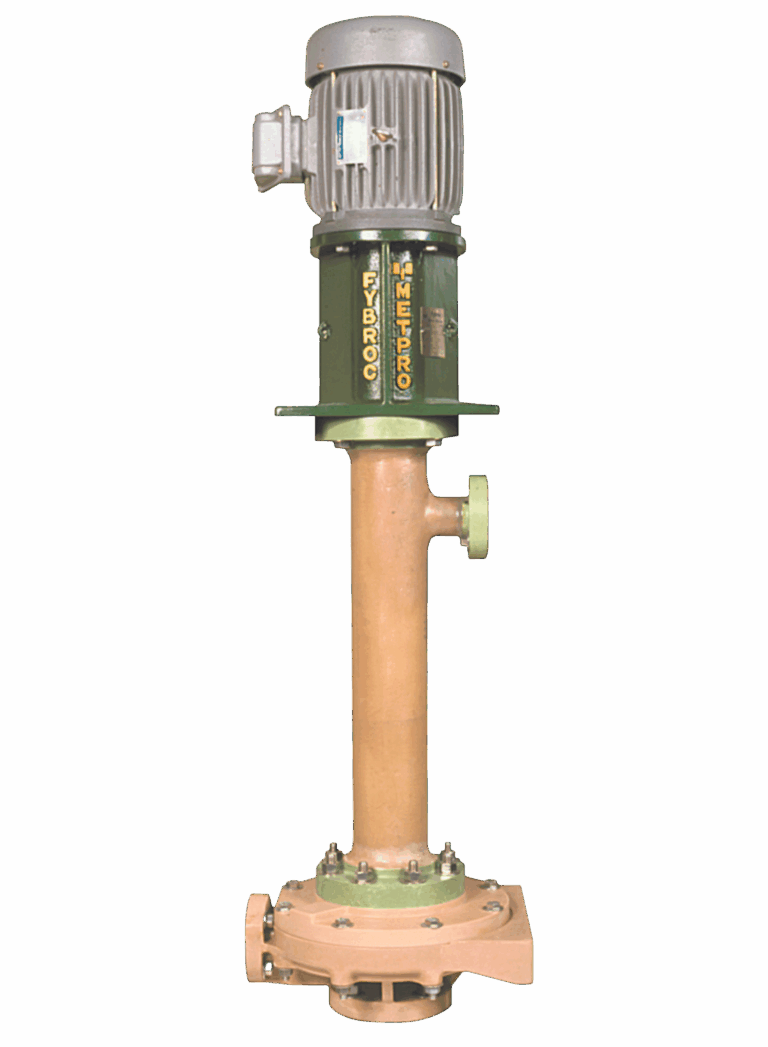

Series 5530 Vertical Dry Pit Pumps
Engineered for dry pits, the Series 5530 Vertical Dry Pit Pump saves space. Its fiberglass-reinforced (FRP) construction offers unmatched corrosion resistance against harsh chemicals, ensuring long-lasting reliability.

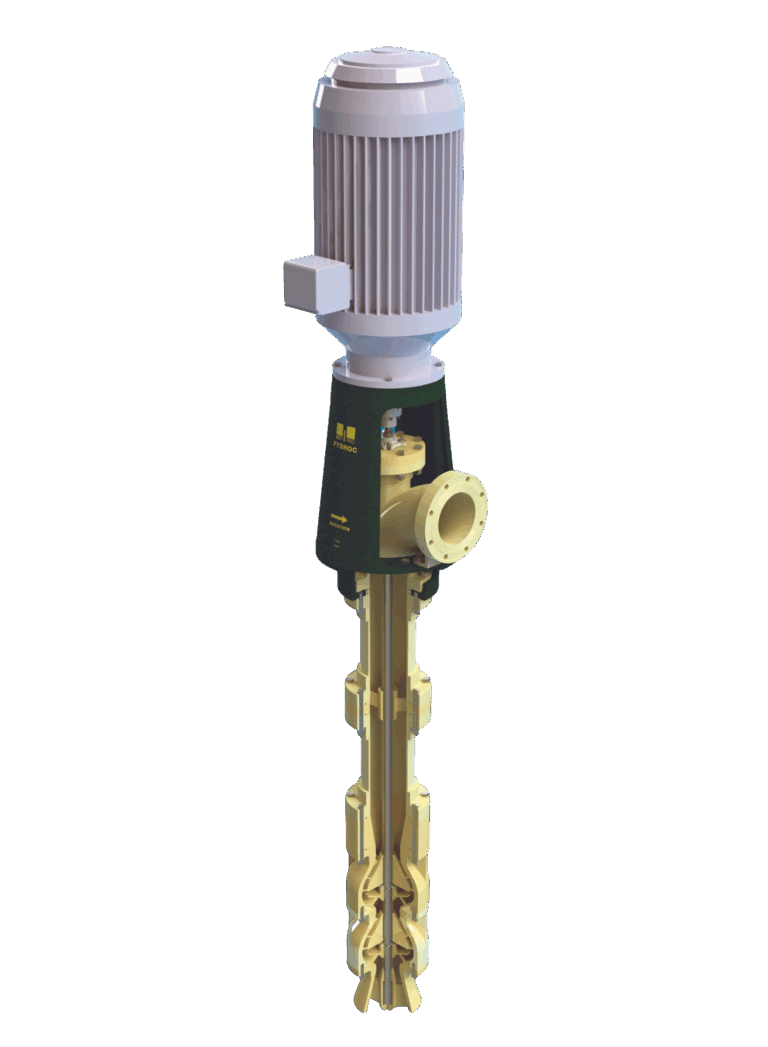

Series 8500 Vertical Turbine Pumps
The Series 8500 is the first and only vertical turbine pump constructed entirely from fiberglass-reinforced plastic (FRP) for installations in pits, wells, or tanks.
